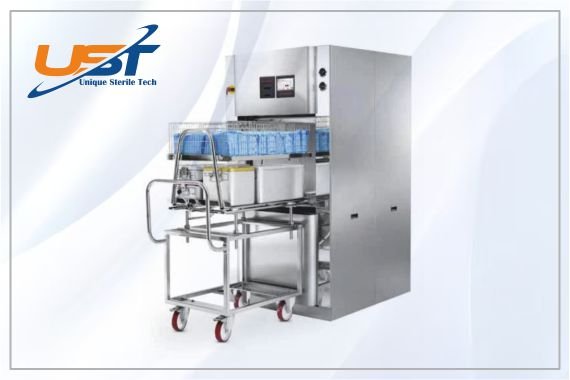

Industrial Autoclave Sterilizer
Vacuum System: Mechanical removal of air initially from within the chamber with the use of a vacuum system ensures that no air-pockets hinder the steam penetration and hence the sterilization process.
Steam Sterilizer for sterilization of varied Hospital equipment like gloves, linen, gauze, cotton, instruments, glassware etc. using standard 121°C & 134°C cycles which are pre-programmed in the memory of the PLC/Microprocessor
Electrical Steam-generator provided for all models up to a chamber volume of 1000 liters.
Temperature uniformly and accurately maintained throughout the chamber to within ± 0.5°C of the Set Sterilization temperature.
Air Filter: 0.01 micron clean air-filter for stabilization of the internal air-pressure from vacuum condition.
Door safety: Door is automatically locked when chamber is under pressure. For double door models, both doors will not open simultaneously to ensure sterile chain integrity.
Safety: Jacket and Chamber Safety valves provided.
Chamber Fabrication: Chamber fabricated out of SS 304/S316 grade steel. Heavy duty Steel Jacket encircles and strengthens the chamber.
| RECTANGULAR AUTOCLAVES (Steam Sterilizer Standard Size) | ||||||
|---|---|---|---|---|---|---|
| Sr. No | Chamber Width (mm) | Chamber Height (mm) | Chamber Depth (mm) | Chamber Volume (M3)/(Ft.3) | Chamber Capacity (Liters) | Floor Space (Width x Depth) |
| 1 | 450 | 450 | 900 | 0.18/6.75 | 191 | 1500/2300 |
| 2 | 600 | 600 | 1200 | 0.432/16 | 450 | 1700/2700 |
| 3 | 600 | 600 | 1500 | 0.54/20 | 563 | 1700/2700 |
| 4 | 900 | 900 | 1500 | 1.215/45 | 1269 | 2200/3000 |
