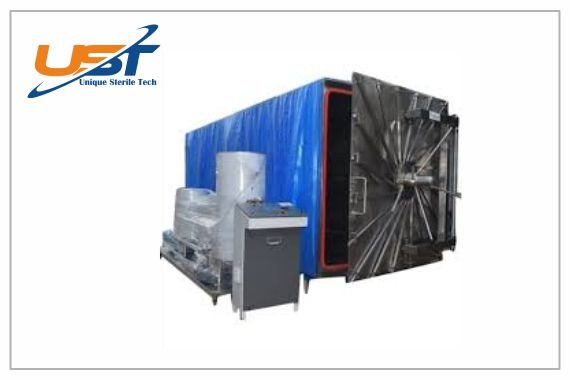

Industrial Ethylene Oxide Sterilizer

Industrial Ethylene Oxide Sterilizer

Design & Technical Features

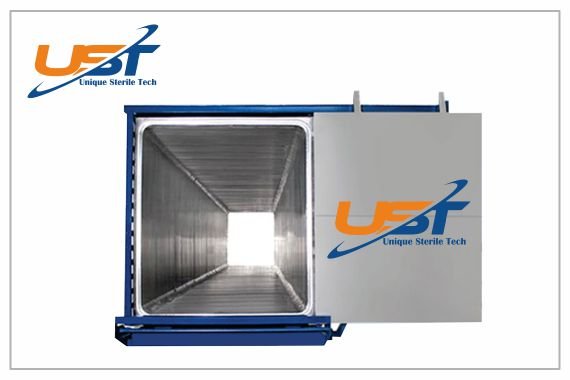

  • 316Ti (316L upon request) stainless steel chamber, which can have a circular or square section, according to customer's or process' need.
  • Chamberrange from 200 to 6.800 liters, but loading capacity is fully customizable, according to customer's need.
  • Chamber internal surface is mechanically polished and complies with rigorous pharmaceutical standards, with a roughness Ra<0,4 µm.
  • One or two doors in automatic sliding version (vertical or horizontal movement) or semi-automatic hinged version.
  • 4 RTD PT100 temperature probes per chamber to monitor chamber and product temperature.
  • Fedegari exclusive patented door gaskets that assure 100% tightness. These gaskets are FDA compliant and optionally also USP Class VI compliant.
  • Innovation: control through pressure (less than 0.5 °C variation).
  • Total control: 4 RTD PT100 temperature probes per chamber, up to 200 alarms and monitoring messages.

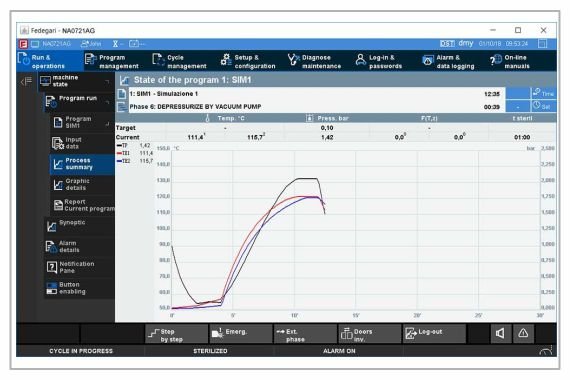

  • Easy validation & integration: pre-validated Thema4 process controller standardized.
  • Complete flexibility: custom designed chambers are easily provided.
  • Cost-effectiveness: smart maintenance and process optimization.
  • Door: Double door & Auto door models are available for clean room applications.
  • Low cost per cycle: Lowest operating costs compared to other available options.
ETO STERILIZER (Standard Size)
Sr. No Chamber Width (mm) Chamber Height (mm) Chamber Depth (mm) Chamber Volume (M3)/(Ft.3) Chamber Capacity (Liters) Floor Space (Width x Depth)
1 450 450 900 0.18/6.75 191 1500/2300
2 600 600 1200 0.432/16 450 1700/2700
3 600 600 1500 0.54/20 563 1700/2700
4 900 900 1500 1.215/45 1269 2200/3000

In Addition To The Above Any Special Sizes Are Also Manufactured To Suit Customer Requirements.
